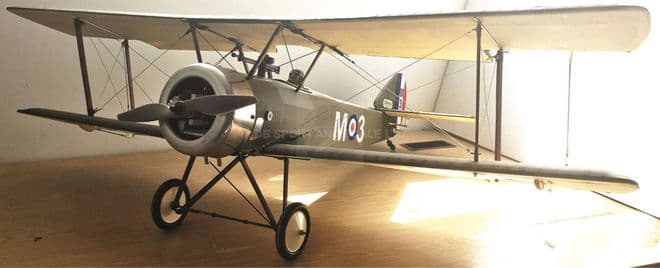

SOPWITH PUP E
An attractive WWI bi-plane in a small, easily portable size.
Originally designed for glow engines, but now has the facility for electric power, 3 or 4 channel control.
The kit includes a spun aluminium cowl, pre-cut parts, pre-formed wirework, plan and full building instructions.
The battery pack or fuel tank is housed in a drawer which slides in through the front former, the motor or engine is mounted on the front of the drawer.
The drawer is removable complete with motor or engine without removing the cowl.
Accessories Available (Scroll down for links to the accessories)
- Decal Set
- Vintage or balloon Wheels
Technical Data:
- One eighth scale
- 1016 mm (40") span
- for 0.15- 0.20 cu.in. (2.5-3.5 cc) glow motors
- C/G 2-1/2" back from top wing L/E
- Wing 'G' test = 5+
- Expected flying weight; under 2kg
- Down thrust - 2 degrees
- Side thrust - 2.3 degrees
Spares
- Aluminium Cowl (diameter 125mm, depth 55mm)
PLEASE NOTE, the engine mount shown is to demonstrate the way an engine or motor would be fitted to the front of the drawer, it is not included in the kit.
Rigging and gun is not included and pictures may contain other parts that modelers have added.
PDF Build Instructions - English
A Possible Electric Setup from 4-Max
