Nieuport 24

92" / 2336mm span

Product information

NIEUPORT 24 - Plan or Full Plan Pack

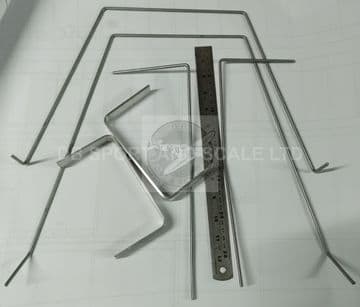

This has recently been revisited with the use of CAD. Ribs have been redrawn and a wood pack added. The Wirework is also now available consisting of Front and Rear bent Undercarriage wires, two rear bent cabane wires along with the two aluminium front cabanes (bent).

This Nieuport 24 is another bi-plane one for the building enthusiast. The full plan pack contains the plan along with all additional components as listed (more parts will be required).

Full Plan Pack Included Components:

3 sheet plans - Plan shows numbers, not sizes. Spreadsheet is provided showing the sizes.
Full GRP cowl
Ribs (recently redrawn using 3d CAD to improve accuracy)
Wood pack containing most shaped Balsa and ply parts (laser cut or CNC cut).
Strip wood pack.

Technical Data:
2336mm (92") span
Suitable for 25 to 50 cc engines.
C of G 136mm (5.35") from LE

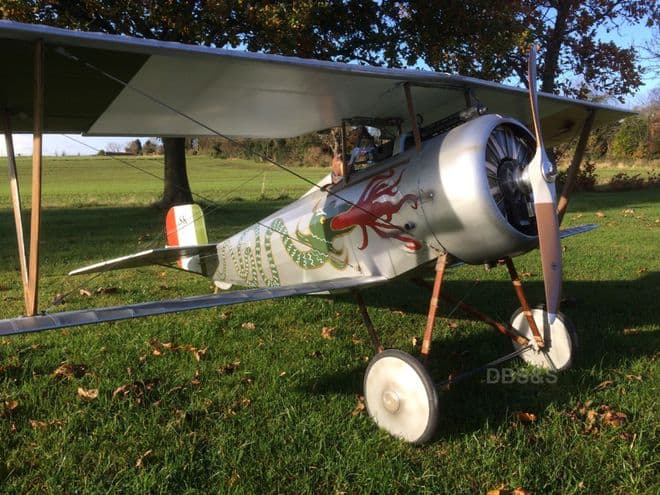

Pictures provided by Stuart Knowles.

Download Nieuport 24 Instructions PDF

Possible Electric Setup from 4-Max
