Product information

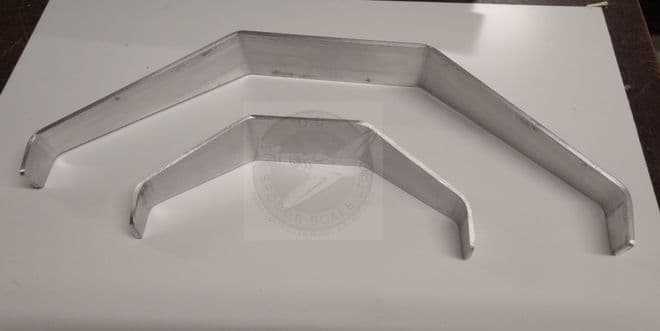

DB Dural UnderCarriage.
These are made to order from 3mm thick Duraluminium, supplied cut and bent to shape. The undercarriage can be easily lightly sanded and polished depending on the finish you require.
Fixing holes can be easily drilled.
Size is approximate:
Barnstormer 63 / BiStormer 60
272mm Wide, 90mm Top flat Section, 85mm height (from approx axle hole).
Barnstormer 72 / BiStormer 72
322mm Wide, 100mm Top flat Section, 102mm height (from approx axle hole).
Expo 80
Approx 365 wide, 124 high with 125 centre section
Ghostrider
203mm Wide, 75mm Top flat Section, 50mm height (from approx axle hole).
Mighty Barnstormer
365mm Wide, 125mm Top flat Section, 100mm height (from approx axle hole).
Skyrider
288mm wide, 84mm high with 95mm centre section
Tinker
240mm wide, 102mm high with 75mm centre section
Twin Tub
420mm width between wheels 65mm from top to axle 120mm wide at top. (2" wide - 50mm)
Tyro Major
tbc
