Auster J1

Auster J1
Auster J1 Auster J1 Auster J1 Auster J1
2210mm (87") span for .60-.90 4-stroke or electric
Brand: DB
£235.00
More Information

AUSTER

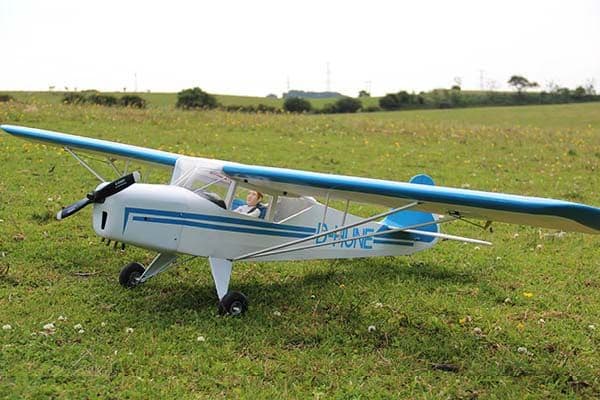

A near scale model of the Auster J1 with classic looks and majestic in the air with Wings that detach for transportation

Quality kit of laser cut balsa and ply parts with pre-formed wirework, moulded canopy and two part GRP cowl.  This J1 Auster Model kit also contains a comprehensive hardware pack consisting of closed loop for rudder, metal clevis's for all control surfaces, wheels, collets and screws etc.

A fuel tank is not included, but is available as optional extra, as more and more modelers are switching to electric.

A new system to retain the wings was specifically designed for this Model.  Which means that ehe aircraft can now be assembled and taken apart very quickly on the field, without the use of screws or collets to keep the wings against the cabin top.
This system has also eliminated the old problem of wing movement against the fuselage.
We have also incorporated the use of these units in other aircraft.


Accessories Available (Scroll down for links to the accessories)
Full Decal Set:
Military
Civilian decals
Fuel tank 14oz rectangular (RA)


Technical Data:
Scale -1:5
Span -221cm (87")
ApproxWeight -4.0kg (8lb 13oz)
Channels- 4
Engines -.10-15cc (.60-.90cu. in )
0.60 - 0.90 4 strokes, 0.60 2 strokes
C/G position -33/8" (85mm) from L/E
Wing 'G' test = 6+
Diagram Showing Dimensions of the Auster Cowl.


Spares
GRP Cowl
Vac formed top Glazing
Front and Side Glazing set
Ribs POA


Build blog

A Possible Electric Setup from 4-Max

Auster instructions PDF


Our latest addition to the picture Gallery is courtesy of João Santos Silva:
"Picture of my
auster j1 that was first this year the cup of Portugal F4C" (The one on the table)
